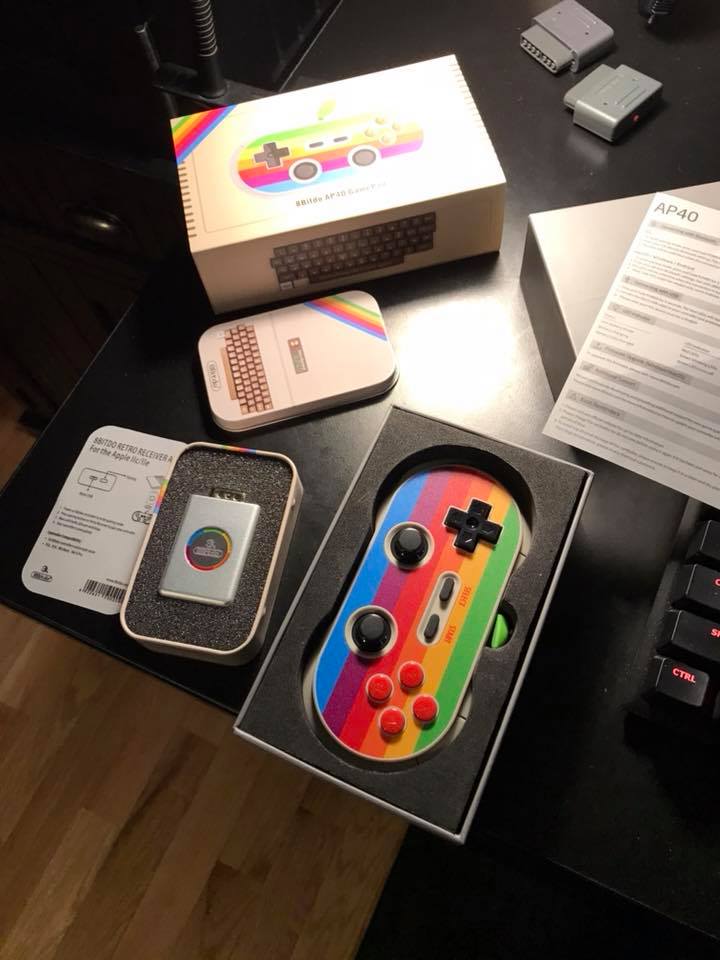

As I continue to optimize what remains of my collection, I’ve been coming across items that inevitably need firmware or other updates. One such device is 8Bitdo’s AP40 retro receiver, which is a Bluetooth dongle for Apple II computers that can work with a cosmetically matching 8Bitdo controller or other types of Bluetooth controllers. Originally a Kickstarter, where I procured mine from, both items are now available exclusively – and expensively – from 8Bitdo’s official AliExpress store (Update: it looks like they just carry the extra special edition of the gamepad now, no dongle anymore).
Anyway, the reason there’s a need for a firmware update is that the stock firmware (at least at the time I got mine) does not support the full range of the Apple II’s analog zones. Unfortunately, the official 8Bitdo support site does not list the product at all anymore, so I both contacted 8Bitdo support and also asked at the Apple II Enthusiasts Facebook group. As is par for the course, I received a helpful response first from the Facebook group.
While it still doesn’t provide the full analog range, there is a beta firmware that does significantly improve it. It’s available here via Facebook.
I then heard back from 8Bitdo’s support. They stated:
"Hello there. AP40=N30/F30 Pro http://support.8bitdo.com/ AP40 is a special edition, just download N30/F30 Pro firmware. Thank you for contacting us."
So that’s option 2. Or it would be if they didn’t misunderstand and give me the update instructions for the gamepad rather than the dongle. I updated the gamepad anyway, which is, fortunately, still supported and usable with more than just this particular dongle should I so choose (I won’t).

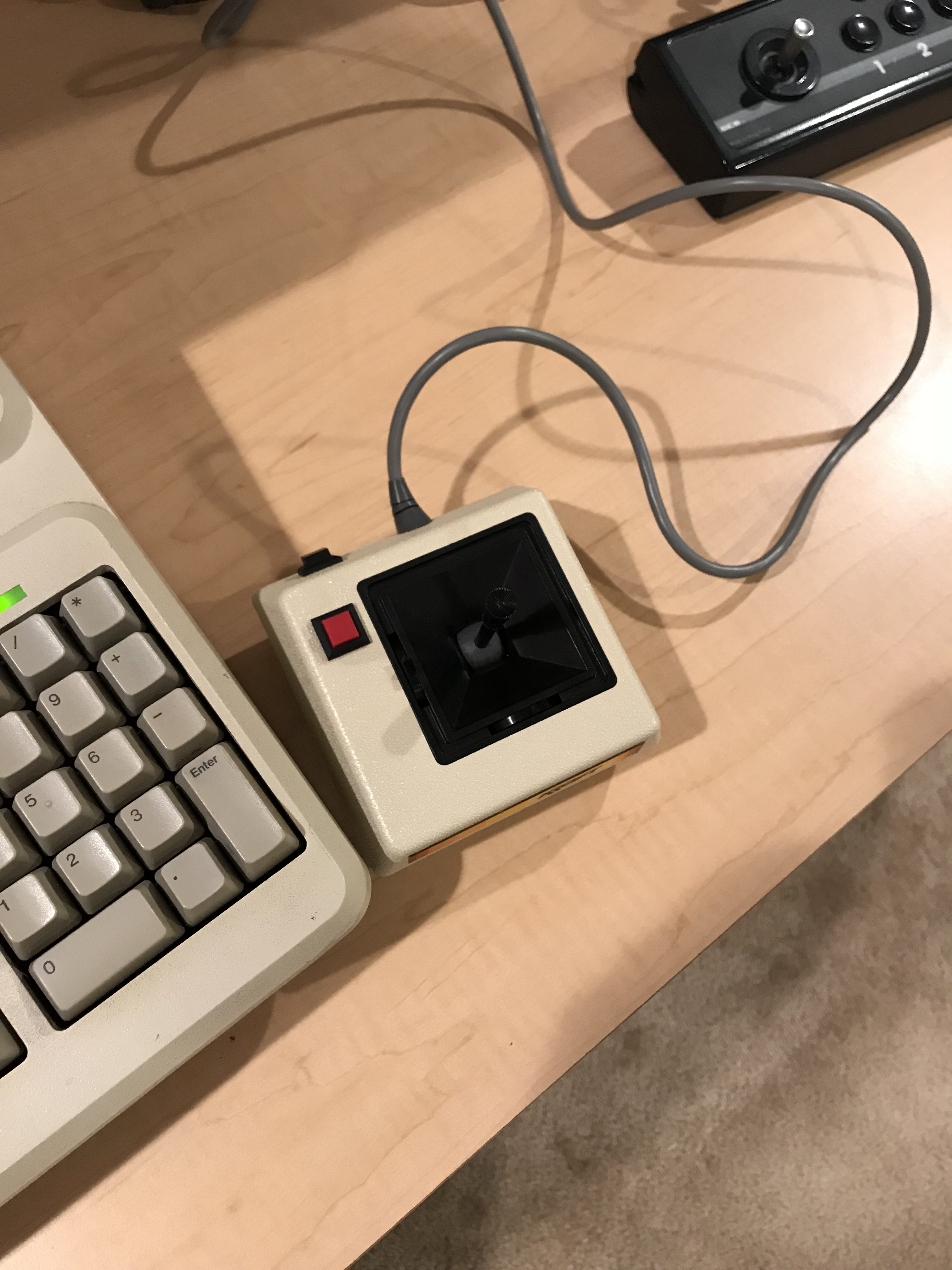

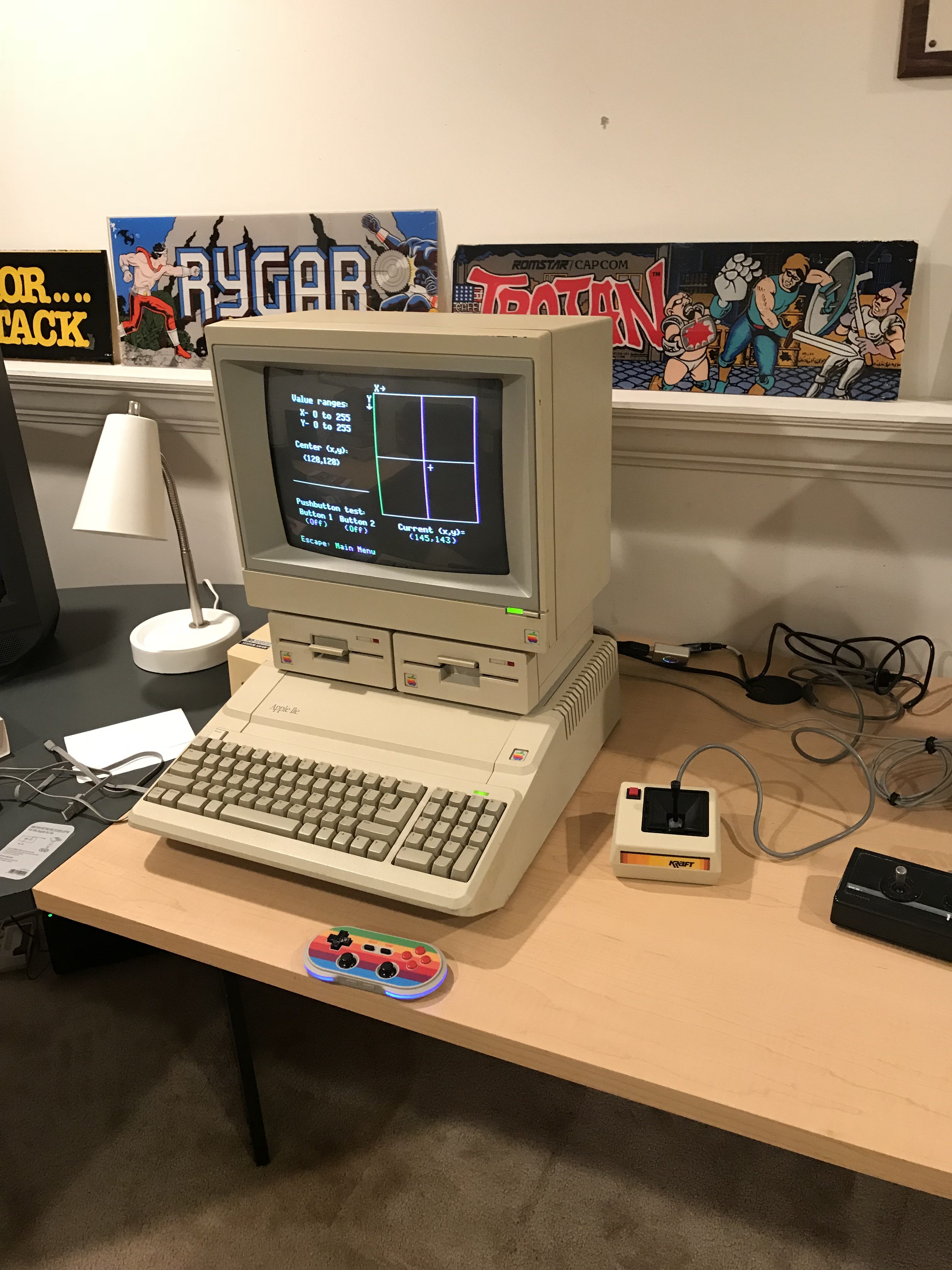

Supposedly, updated firmware or not, testing results can vary wildly on a system-by-system basis. In my own testing with the MECC Computer Inspector Disk (also available from the Apple ][ Disk Server) on my Apple IIe Platinum, I found that the beta firmware gave me a good range, but not nearly as good of a range as an original Apple II joystick, in this case a Kraft. Neither gave as good of a range as paddles.
Regardless of my own results and how your own may vary, at least there is an option for improved performance over the stock firmware. After clarifying to support that I wanted a new firmware for the dongle and not the gamepad, I received this response back:
"Hello there. The firmware is the same. Many thanks."
So they don’t even make the beta firmware available. It’s stock all the way for them. Unfortunate to say the least.

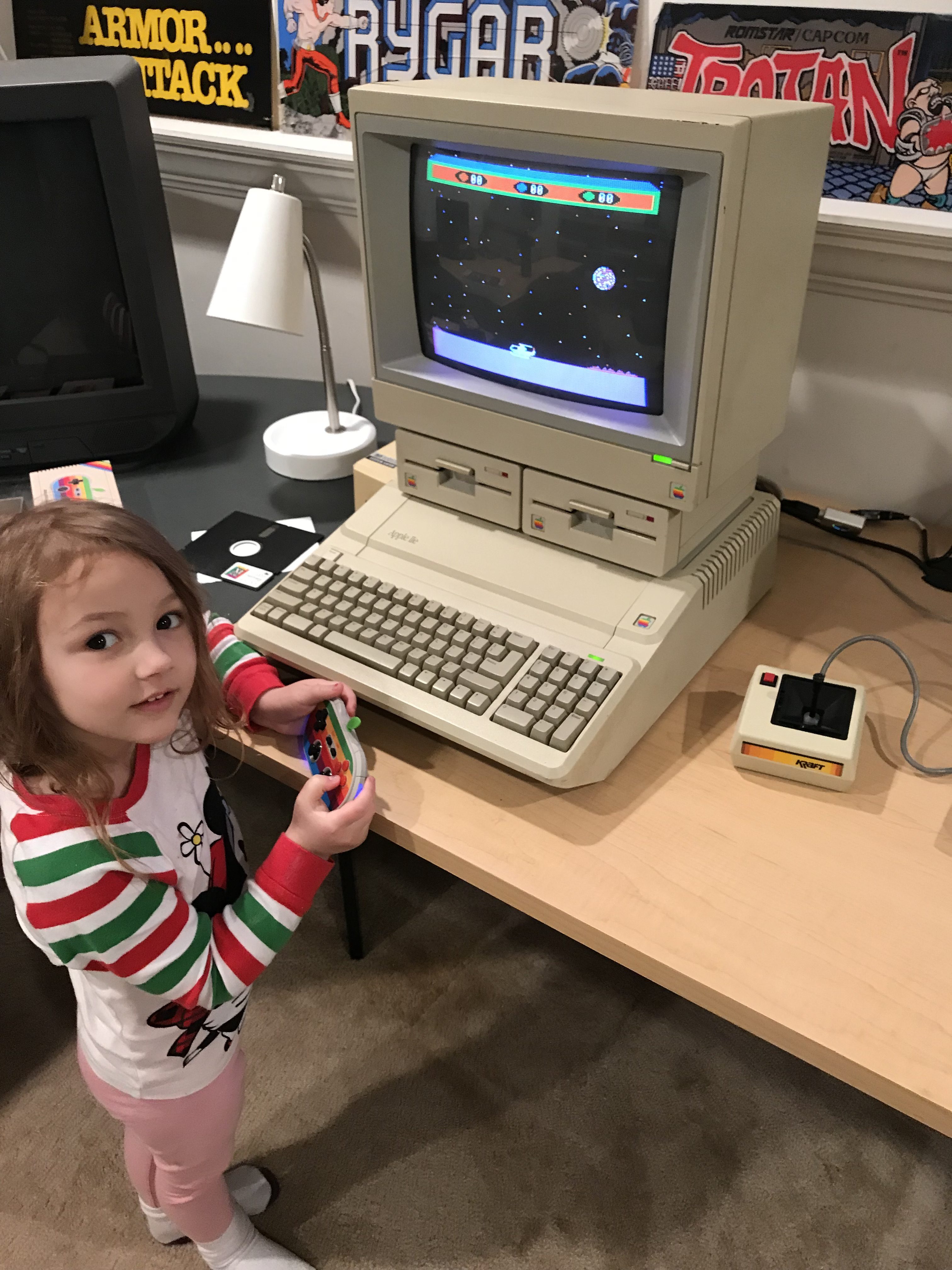

It was frustrating tracking all of this down, but thanks to the Apple II community and, to a far lesser degree, 8Bitdo’s own support, I was able to sort through it. While this will not be replacing my trusty Kraft joystick any time soon, this does now at least make for a somewhat reasonable backup in case that ever goes kaput. The main downside with 8Bitdo’s controller setup is that there are no analog trim pots, which are pretty essential for tweaking a controller on a per-game basis. So basically the default analog range and tuning of the 8Bitdo controller will either work well for a particular game or it won’t. There’s no way to tweak it one way or the other. As such, we still have to hold out hope for a true, modern analog controller replacement solution for those of us who still like to use original Apple II computer hardware.
Hello, do you have alternate access to the beta firmware or even the original 1.22 firmware? I do not have facebook and can’t find any revision of the firmware any where else. I use mine in both a II and IIGS rom3. I also have a weird issue with this in the IIGS, it works but must be plugged in after the computer boots, otherwise it tries to load setup defaults. Ive used AP40 receiver with Rastan and a ps4 controller and it works. Unfortunately it will not work with SNES/SFC30PRO only due to the firmware limitation. Anyway if you still had a copy of the firmware (original and/or beta) that would be awesome. This is literally the only information I could find on the AP40 Receiver. Thanks
I’d recommend signing up for Facebook even if it’s just a burner account. Since my adapter is updated, I no longer have the files. Sorry.
